D’Angelo’s objective was to design one model fith wheel that suits almost all applications. The result is
the patented Maxi. A true all-round performer.
The special feature of D’Angelo’s Maxi is its unique adjustable wear collar which prolongs jaw life. The Maxi fifth wheel is fitted with an easy reach, side access retractable release handle. This means at all times, whether hooked up or disconnected, the handle retracts against the turntable. This feature reduces the likelihood that the release handle is unintentionally bent, which can cause problems when reconnecting.
The side mounted release handle and low profile design of the Maxi also means it suits slide-back type trailers.
Complies with AS 1773-1990.
CRN No. 30974
Weight : 129kg (top only)
- 50mm jaw
- 915mm wide
- Secondary release handle
- Easy access side adjustment bolt

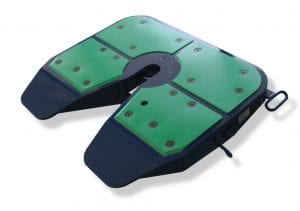

- Greaseless option available (pictured below)
- Long life foot bushes
- Two year structural warranty
